2005-2007 Volvo V70 Seat Side Panel (Plastic Trim)

Side:

Select the Driver or Passenger side

Color:

All shades available - beige, tan, grey, black

Fitment:

Any 2005, 2006, or 2007 Volvo V70

Reference Note:

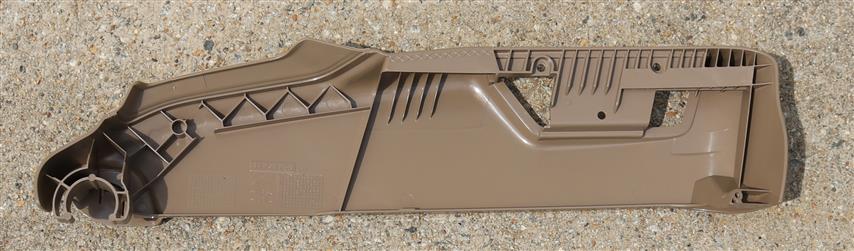

30697086 LH, 31291263 LH, or BPTQA-2 are casting codes often found on the back of these panels, regardless of color

Off-Black/Dark-Grey
Driver side: 39802011
Pass. side: 39802016 (power seat only)
Pass. side: 39996516 (manual seat only)

Taupe/Beige ("Oak")
Driver side: 39802012
Pass. side: 39802017 (power seat only)
Pass. side: 39996517 (manual seat only)

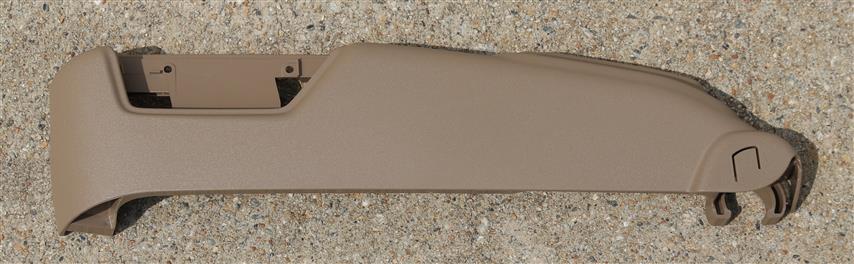

"Sand" (Tan; uncommon)
Driver side: 39802013
Pass. side: 39802018 (power seat only)

Factory replacement plastic seat switch cover. These trim panels weren't designed very well and break quite commonly. Luckily, installing a new one isn't too hard and makes sense when you start doing it (although your neck can get tired). The back end of the piece has a curved plastic ring which comes free by simply yanking up. The front is held to the seat frame by a single torx-15 screw. Once done, look under the seat for 2 or 3 plastic zip-ties that hold down the wire coming from the control panel, & snip them. Disconnect the plug on that wire, & the panel can lift free of the car. Then take the module out of the trim (three torx-20 screws), swap it into your new panel, & do it in reverse.
