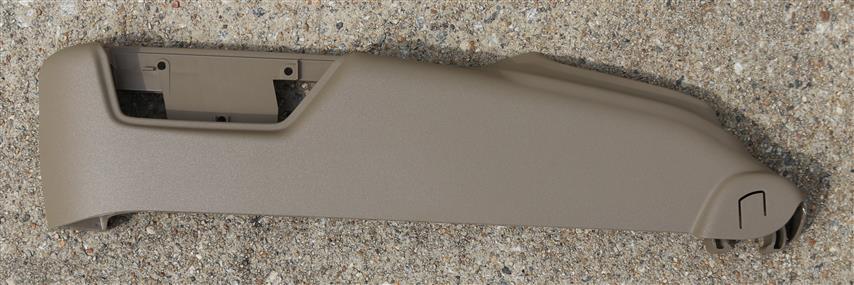

2005-2014 Volvo XC90 Seat Side Panel (Plastic Cover)

Brand:
Genuine Volvo
Condition:
New
Note:
Both sides available in all colors
Fitment:
Any 05-14 Volvo XC90 (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)
Reference Note:
30697086 LH, 31291263 LH, or BPTQA-2 are casting codes often found on the back of these panels (regardless of color)
Our Price:
PRICE VARIES BY SIDE & COLOR; SEE BELOW

Off-Black/Dark-Grey : 2005-2014 Models
Driver side: 39802011 (power seat)
Driver side: 39866788 (power seat with optional ventilation)
Pass. side: 39802016 (power seat)
Pass side: 39866792 (power seat with optional ventilation)
Pass. side: 39996516 (manual seat)

Taupe/Beige ("Oak") : 2005-2006 Models
Driver side: 39802012 (power seat)
Pass. side: 39802017 (power seat)
Pass. side: 39996517 (manual seat)

Soft Beige ("Mocca") : 2007-2014 Models
Driver side: 39802015 (power seat)
Driver side: 39866790 (power seat with optional ventilation)
Pass. side: 39802020 (power seat)
Pass. side: 39866794 (power seat with optional ventilation)

On the side of each front seat is a long trim piece which houses the memory seat control panel (seat adjustment buttons). 'Seat Side Panel' is what Volvo calls this part. Due to a poor design, they tend to crack & splinter over time. Made of molded plastic (and some rubber at the rear), a broken casing might actually pinch your leg as you get in and out. The one on the passenger side usually lasts longer than the one on the driver side, but can still take a beating. Luckily, if either side panel is shot, it's a cheap fix with a new Genuine Volvo replacement.

Installing a seat panel isn't hard & makes sense when you start doing it (although your neck can get tired). The back end of the piece has a curved plastic ring which comes free by simply yanking up. The front is held to the seat frame by a single torx-15 screw. Once done, look under the seat for 2 or 3 plastic zip-ties that hold down the wire coming from the control panel, & snip them. Disconnect the plug on that wire, & the panel can lift free of the car. Then take the module out of the trim (three torx-20 screws), swap it into your new panel, & do it in reverse.
